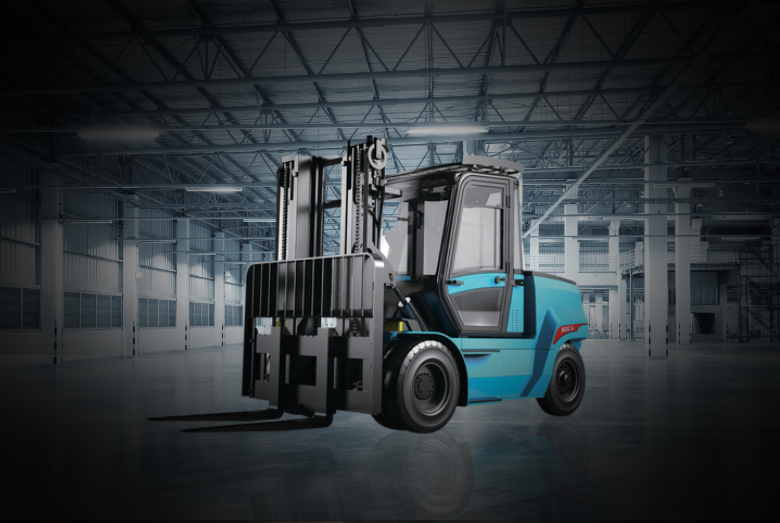

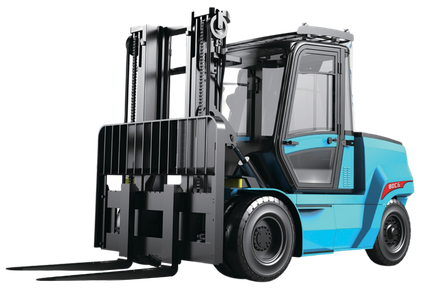

SANY FORKLIFT
SCP80C6
ELECTRIC FORKLIFT
Further upgrade Lithium-ion battery vehicles
Lithium-ion Counterbalanced Forklift
Platform & Performance
This model features an 8,000 kg rated load capacity and a 600 mm load center. With an overall height under 2,540 mm, it is specifically designed to easily access and operate within shipping containers. It achieves a maximum travel speed of 20 km/h and a 20% gradeability under full load.
Fast Charging
The forklift utilizes a high-voltage lithium battery system (386V/200Ah) that supports 1-hour fast charging. This allows for rapid power replenishment to ensure uninterrupted, all-day operation, providing approximately 15% longer runtime than competing models.
Strong Protection
Engineered for all-weather operation, the triple power system carries an IP67-rated waterproof certification, allowing the machine to work reliably even in heavy rain. The unit also includes smart safety features such as operator posture monitoring, facial recognition, and a standard rearview camera.
High Efficiency
Equipped with a powerful 65 kW travel motor and dual 35 kW lifting motors, the SCP80C6 delivers strong power output that outperforms rivals by 20%. It offers efficient handling with a lifting speed of 350 mm/s and a lowering speed of 450 mm/s.
High Reliability
Maintenance is highly efficient thanks to a tiltable cabin design that provides full access to internal components within one minute. The forklift is built for long-term durability in demanding scenarios, supported by intelligent features like a cloud platform and remote diagnosis.
Product Features
Fast Charging, Ease to Use
- 0% ~ 100% charge in one hour
- 8 hours of continuous operation
- Compatible with international charging stations
High Efficiency, High Performance
- Better performance parameters than traditional fuel vehicles
- Outperforming electric vehicles of the same class
- Meeting the demand for electrification
Enhanced Reliability, Great Safety
- IP67 protection and all weather operations
- Automatic speed reduction when returning
- Automatic hill hold
- High-voltage and low-voltage protection
- A 5-year or 10,000-hour warranty for the battery, motor, and electric control systems
Convenient Maintenance
All components are well arranged and right within reach after the outer cover is removed, making maintenance more convenient.
Lift Speed
>350 mm/s
Movement Speed
>22 km/h
Gradeability
>20%
Votage Platform
386 v
Std. Battery Capacity
200 Ah
Convenient Maintenance
All components are well arranged and right within reach after the outer cover is removed, making maintenance more convenient.
Intelligent Cloud Services
Human-machine interaction and real-time access to online data
The intelligent vehicle monitoring and management platform allows real-time interaction between vehicles and cloud data, including real-time monitoring of vehicle status and timely reports on faults.
The Iron Ant after-sales cloud service platform provides real-times warranty services, automatically dispatches orders, and offers after-sales technical support.
| Category | Unit | SCP80C6 | |
|---|---|---|---|
| Overview | |||
| Rated load capacity | Q(lbs) | 17637 | |
| Load center distance | c(in) | 23.62 | |
| Front overhang | x(in) | 24.92 | |
| Wheel base | y(in) | 94.49 | |
| Dimensions | |||
| Mast tilt angle (front/rear) | α/β(°) | 6/10 | |
| Height when mast is retracted | h1(in) | 100.0 | |
| Free lift height | h2(in) | 0 | |
| Lifting height | h3(in) | 118.11 | |
| Max. height when mast is raised | h4(in) | 175.20 | |
| Overall width | b1(in) | 78.74 | |
| Min. turning radius | Wa(in) | 125.98 | |
| Weight | |||
| Dead weight | lbs | 25794 | |
| Axle load front/rear (full load) | lbs | 37373 / 6183 | |
| Performance | |||
| Max. travel speed (full/no load) | km/h | 20 / 20 | |
| Max. lifting speed (full/no load) | mm/s | 350 / 450 | |
| Gradeability (full/no load) | % | 20 | |
| Drive System / Battery | |||
| Travel motor (S2-60min) | kW | 65 | |
| Lifting motor (S3-15%) | kW | 2 x 35 | |
| Battery voltage / capacity | V/Ah | 386 / 200 | |
Mast Parameters - SCP80C6
| Mast Type | Mast Model | Max Lifting Height (in) | Capacity (lbs) (LC 600mm) | Mast Full Height (in) | Max Operating Height (in) | Free Lifting Height (in) | Mast Sloping Angle (°) |
|---|---|---|---|---|---|---|---|
| Stage II wide-view mast | S30 | 118.11 | 17637 | 99.61 | 160.24 / 175.20 | 0 | 6/10 |
| S35 | 137.80 | 17637 | 109.45 | 180.31 / 194.88 | 0 | 6/10 | |
| S40 | 157.48 | 17637 | 119.29 | 200.39 / 214.57 | 0 | 6/10 | |
| S45 | 177.17 | 15873 | 133.07 | 221.65 / 234.25 | 0 | 6/6 | |
| S50 | 196.85 | 14217 | 146.85 | 245.28 / 253.94 | 0 | 6/6 | |
| Second-stage free-lift mast | D30 | 118.11 | 17637 | 99.61 | 160.24 / 175.20 | 56.30 / 41.73 | 6/10 |
| Stage III free-lift mast | T45 | 177.17 | 14551 | 99.61 | 219.69 / 234.25 | 56.30 / 41.73 | 6/6 |
| T48 | 188.98 | 13228 | 103.54 | 231.50 / 245.67 | 60.24 / 45.67 | 6/6 | |
| T50 | 196.85 | 12566 | 106.30 | 239.37 / 253.94 | 62.99 / 48.43 | 6/6 | |
| T55 | 216.54 | 10362 | 116.93 | 260.98 / 273.62 | 73.62 / 59.06 | 3/6 | |
| T60 | 236.22 | 7496 | 127.56 | 284.65 / 293.31 | 84.25 / 69.69 | 3/6 |
